GXP2170 Configuration

⚠

Firmware 1.0.7.97 or newer required.

SIP Registration

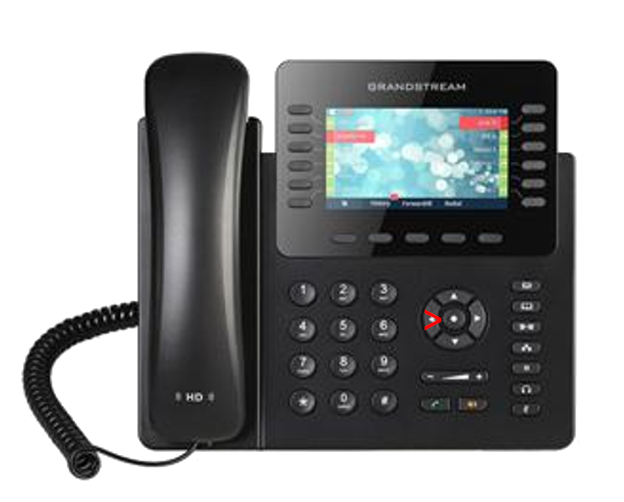

  • Find the IP-address of your IP Phone. Press the Menu Key in the middle of the Arrow Pad. main_menu

  • Navigate to Status and Select "Network Status"

  • Take note of the IPv4 Address displayed

  • Navigate to the IP Phones web-interface using a browser on your PC.

  • Type the IP-Address of the IP Phone in the browser's address bar.

browser-address-bar

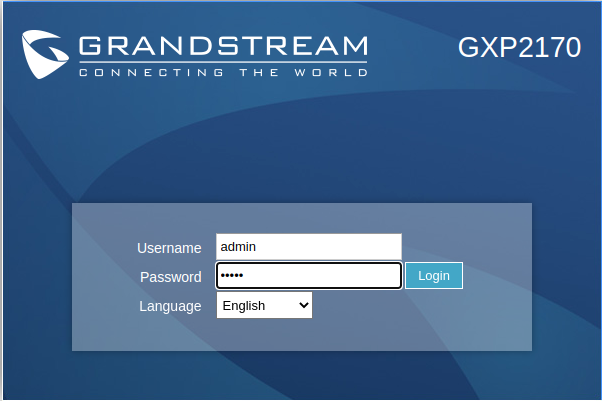

  • Login to the IP Phones interface (Default username and password is admin / admin)

login-screen

  • Navigate to Accounts - Account 1 - General Settings

account-1-navigation

  • Set the Account to Active and fill out SIP Server, SIP User ID, Authenticate ID, Authenticate Password, and Name as per the information you recieved from Support.

account-1-settings

  • Click on Save and Apply

STUN Configuration

⚠

STUN configuration is required to avoid audio issues such as one way audio.

  • Click on Network Settings in the left hand side menu.

network-settings-menu

  • In the Nat Traversal drop-down menu select STUN

  • Click on Save and Apply

  • In the top menu select Settings - General Settings

general-settings-menu

  • Add "stun.tonet.io:3478" in the "STUN Server" field.

general-settings

  • Click on Save and Apply
